Last Version

MultiAnalyzer Software A31.2

History:

Version: A31.2 (2026-05-28)

General:

• Update: Qt 6.11.1
• Update: Python 3.14.5.
• Update: libusb to 1.0.30RC2.

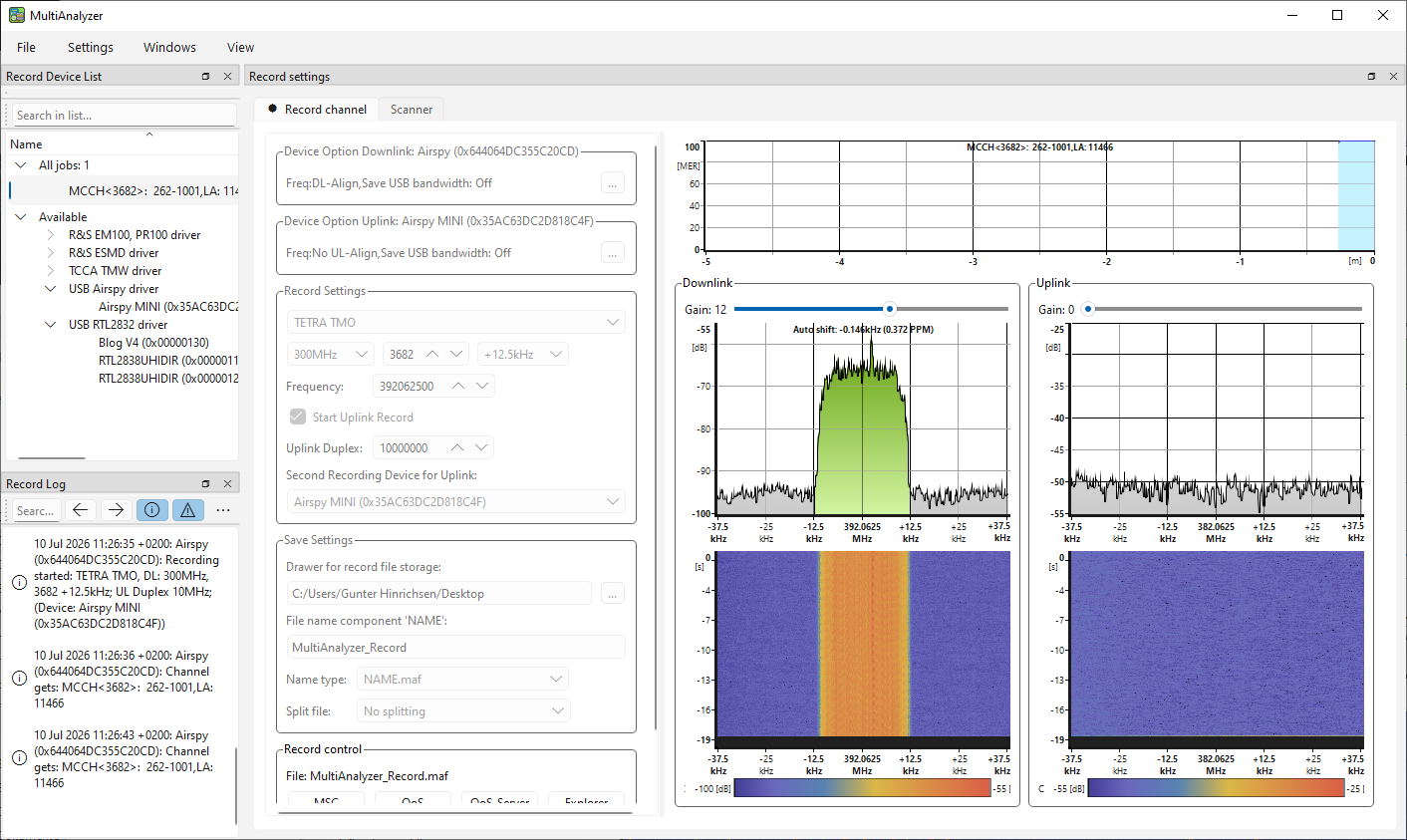

MultiAnalyzerPre (Rewritten Record GUI):

• New: Added support for hot-plugging.
• New: Displays waterfall diagram.
• New: PPM frequency correction added.
• New: Log window with details.
• New: Flash tools for RTL-SDR added. (Serial-Number)
• New: Flash tools for AirSpy added. (Firmware)
• Changed: Displays static frequency offset and automatic adjustment separately.
• Changed: The gain will be adjusted immediately.
• Changed: One List with all devices.
• Changed: Displays uplink and downlink on the same page.

RtlSdrDriver:

• New: Block V4 option for Bias tee added.
• New: Added support for hot-plugging.
• Change: The maximum number of devices has been increased to 24.
• Change: Synchronisation of the uplink and downlink timing has been improved.
• Change: Improved IQ stream watchdog.

AirspyDriver:

• New: Added support for hot-plugging.
• New: Added support for data packing (Saves 25% of USB bandwidth).
• Change: The maximum number of devices has been increased to 24.
• Change: Synchronisation of the uplink and downlink timing has been improved.
• Change: Improved IQ stream watchdog.

Rohde&Schwarz EM100/PR100 driver:

• Change: Synchronisation of the uplink and downlink timing has been improved.

Rohde&Schwarz ESMD driver:

• Change: Synchronisation of the uplink and downlink timing has been improved.

DMR-Protocol:

• Fix: C_Ackvitation analysis.
• Fix: Authentication Response Elements.
• Fix: Status and Message output from C_RHEAD.

MultiAnalyzer Software A30

History:

Version: A30 (2025-10-14)

General:

• Update: Qt 6.8.5
• Update: Python 3.14.0.
• Update: Installer to 6.5.4.
• Update: libusb to 1.0.29.
• Update: Argon2d to head.

NetworkViewer:

• New: Windows 11-style display (normal or dark, automatic or forced).
• New: Split data list into three sub-lists:

  a) Data (sorted by Files and Real-time data, Cells, Marks)

  b) RSSI channel data (Split for TETRA in: Best path/Best neighbour, channel)

  c) Additional data (like cell-changes)

• New: Simultaneous measurements of multiple devices and/or protocols (such as TETRA and DMR), viewing in real-time or loaded from record.
• Change: Improved drawing speed.
• Change: Improved tablet gesture.

TetraRssiLogger:

• New: Simultaneous measurements of multiple devices and/or protocols (such as TETRA and DMR).

MultiAnalyzerRecord:

• New: Windows 11-style display (normal or dark, automatic or forced).

MultiAnalyzerMsc:

• New: Windows 11-style display (normal or dark, automatic or forced).
• New: Show MasDecryptor status while loading.
• New: Current AIE status.
• New: Show AIE load settings statistic.

MultiAnalyzerQoS:

• New: Windows 11-style display (normal or dark, automatic or forced).
• New: Show MasDecryptor status while loading.
• New: Current AIE status.
• New: Show AIE load settings statistic.

MultiAnalyzer Software A29

History:

Version: A29 (2025-02-22)

General:

• Update: Qt 6.8.
• Update: Python 3.13.2.
• Update: Installer to 6.4.1.
• Update: zstd to 1.5.7.
• Change: Compiled with MVS 2022.
• Fix: Better support of windows dark-mode.

NetworkViewer:

• New: Indoor Measurement (Tetra + DMR).
• New: Windows Tablet support.
• New: Tetra Lot of enhancements and fixes.

Tetra-TMO-Protocol:

• Update: TS 100 392-2 V3.10.1, TS 100 392-7 V4.1.1.
• Fix: logical channel already decrypted for BSCH+SCH/HD on TMV.

Tetra-DMO Protocol:

• Update: TS 100 396-6 V2.1.1.

RtlSdrDriver5V.dll:

• Update: rtl-sdr-block driver to version 1.3.6.

AirspyDriver5V.dll:

• Update: AirSpy-Driver to git head.

MultiAnalyzer Software A28.2

History:

Version: A28.2 (2024-06-12)

General:

• Update: Qt 6.5.6.
• Update: Installer to 6.3.1.
• Update: Python 3.12.4.

MultiAnalyserMsc:

• New: Add menu entry for receiving streamed TMW data (R8000 MS-Test: DMR TIER III, TMO).

Version: A28.1 (2024-05-27)

MultiAnalyserMsc:

• Fix: Clean all messages cause not anymore draw errors.
• Fix: Start with command argument TMW is working again.

Version: A28 (2024-05-03)

General:

• Fix: Dark and normal mode is now supported.

Tetra-Protocol:

• New: Support of single PDU already encrypted.
• Change: Add for all encrypted messages (aie) extension.
• Fix: Uplink double STCH fragmentation is working now.

NetworkViewer:

• Change: After loading, the base layer is selected.
• Fix: The parsing of data has been accelerated.
• Fix: Less memory required for drawing.
• Fix: Filters invalid MCC, MNC and LAC entries.
• Fix: Only paint tiles with data content.
• Fix: Aborting the parsing of files and the creation of layers.
• Fix: Counts all invalid entries.

NetworkViewer - RecordFile Plug-in:

• Fix: Aborting the loading TETRA raw-files.
• Fix: The import of TETRA MAF works again.
